The Timespace X500 hybrid recorder is ideal for use in covert, mobile and law-enforcement surveillance applications. The X500’s High Quality Audio provision includes 4 studio-quality audio inputs, enabling “gunshot to whisper” audio recordings. Providing 4 analogue camera inputs and 4 IP cameras, the X500 gives users the option of high-quality IP camera footage.

Dual analogue and IP camera recording
H264 video compression
48000Hz, 24 bit audio recording x4
SHA-2/AES-256 watermarking
Normal, continuous, motion and alarm-triggered recording
Low power, silent operation
Built in power supply, timer shutdown and Gsensor
Optional GPS
PTZ support
Up to 2TB recording media with additional backup SD card
Removable hard drive
Quick install, compact, integrated one box solution
Easy-audit and Playback with local Reviewer
Fully-compatible with Timespace PCLink and LANLink software for footage review and download
Also available with VCA E11 R118 approval (fire safety/burning behaviour of materials)

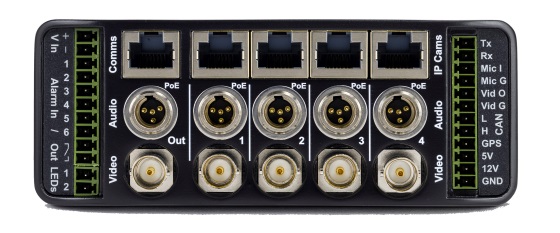

Rear View of DVR

T604 DVR

Download X500 Datasheet
Download X500 CE certificate

Download X500 Manual

IP Camera Setup Guide
