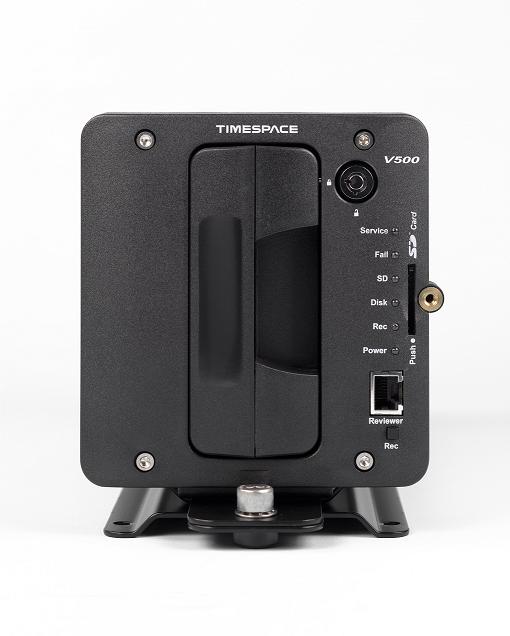

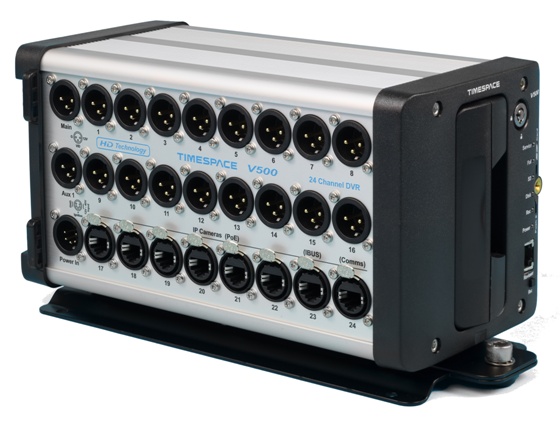

The Timespace V500 builds on the proven V400 platform and is a hybrid recorder offering 16 channels of analogue (SD) video plus 8 channels of 1080P (HD) video.
Built in ‘Power Over Ethernet’ (PoE) and industry standard connectors enable quick and reliable installation, and with 4 programmable video outputs, the V500 is an ideal CCTV recorder for integration into a wide range of vehicles.
Industry-leading PCLink viewing software is compatible with all Timespace recorders and seamlessly displays all cameras, G sensor and optional GPS mapping data, providing built-in real-time map location incident analysis.
Optional integration with Bridge Alert provides early warning of low bridges and monitoring of Bridge Alert operation.
The V500 is fully compatible with LANLink and with the Timespace WiFi100 router to quickly and reliably download incident footage via date/time or GPS location requests.
With watermarking, SHA-256 authentication, embedded vehicle data(indicators, brakes etc.) and GPS, date, time, speed and location, the V500recorder footage meets evidential requirements when needed for court proceedings.

24 video channels
  • 8 channel 1080p HD IP Camera support
  • 16 independent video PAL channels with up to 250ips
H.264 compression
Bridge Alert - Timespace low bridge warning system
Transport for London diagnostic reporting with dual LAN ports
Quick install, compact, integrated one box solution
Built in power supply, timer shutdown, microphone pre-amp and GSensor
Up to 4TB recording media with additional backup SD card
Removable, fully suspended hard drive for long term reliability
Easy-audit and playback with local Reviewer
Improved file system recovery from power interruption V500 Recorders do not require a UPS
VCA E11 R10 approval (Electromagnetic compatibility)
Also available with VCA E11 R118 approval (fire safety/burning behaviour of materials)

T716 DVR

 T708 DVR T712 DVR

 Download V500 Bus/Transport Datasheet
Download V500 Manual
